Okay, you are sitting on a LAN Network and communicating with different hosts without any issue. But how does your computer know about other hosts on the LAN or anyone host on the Internetwork? The mystery behind all these operations is ARP. Address Resolution Protocol gives us a facility to resolve IP addresses into the corresponding MAC addresses.  When a computer wants to send data to some unknown host on the network, which MAC address is not known and all the info that computer has is just an IP address, ARP is used to resolve its L2 address. All this data is maintained in an ARP table on each host locally, Routers and Switches also maintain an ARP table.

Quick facts about ARP:

Now just imagine a local LAN, on which a host wants to ping an unknown host. In the first step it will send an ARP broadcast to all hosts on the LAN and will enquire about the IP address. A sample capture of an ARP broadcast capture in packet tracer is as follow, PC2 wants to communicate with PC4:

As the MAC is not known, it’s using a broadcast address in L2 and the packet is sent to all hosts on LAN. Now what happened on PC4?

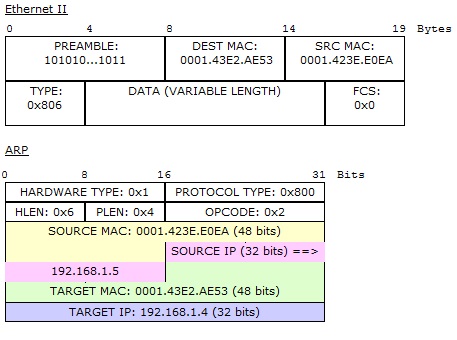

The ARP request`s target IP (192.168.1.5) got matched with 192.168.1.5, so this host will reply to PC2, so the magic that happens next is:

The address has been resolved to corresponding MAC address as can be seen in Out Layers, so in the last stage:

As you can see in above ARP packet at the source host PC2, the pinged L3 address of PC4 has been successfully resolved to its corresponding MAC (Hardware) address. Packet tracer is one of the best tools to see all the action on data packets in a real time network. To check ARP table on a router, use show ip arp command.

ARP due to is its open nature is susceptible to attacks. The most common attack on ARP packets is ARP Spoofing or Man in the middle attack. In such an attack, a hacker responds to ARP requests in disguise of the requested L3 address. One most recent example of ARP spoofing attack was carried out by Iran on an American drone, which was hacked and landed in Iran by Iranian Defense forces. Same sort of experiment was carried out in a US University in which ARP spoofing was used as an attack mechanism on Drones, and it was quite successful. DOS (Denial of Service) attack can be carried out very easily on the electronics devices which are using ARP stuffing, so a hacker can easily jam all the surveillance system of some big corporation J .
